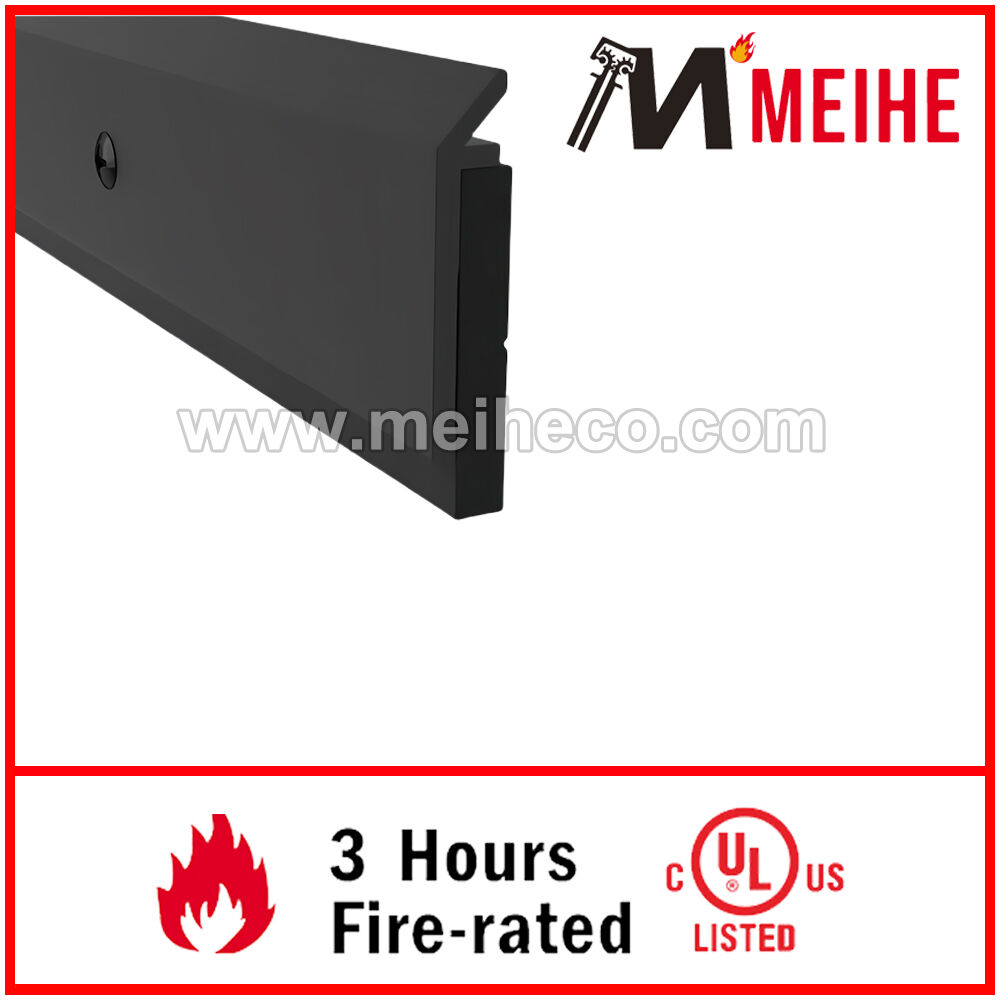

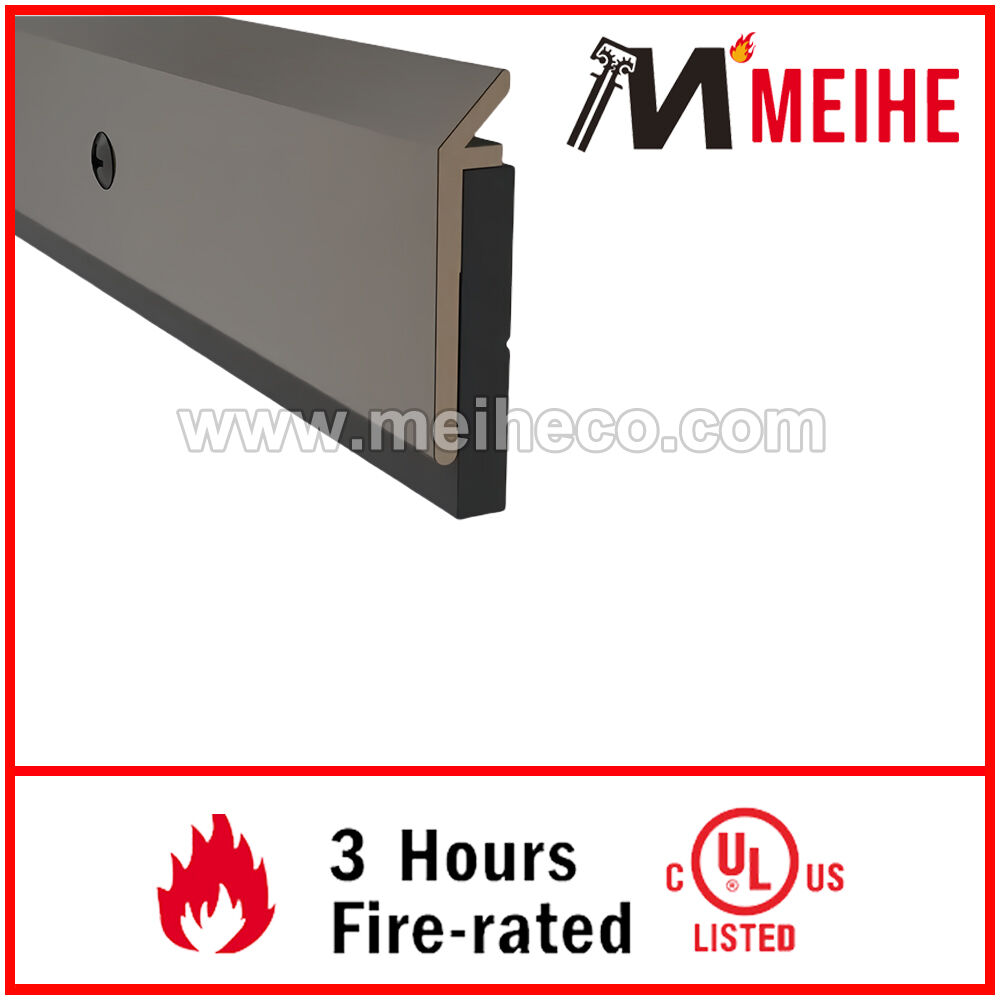

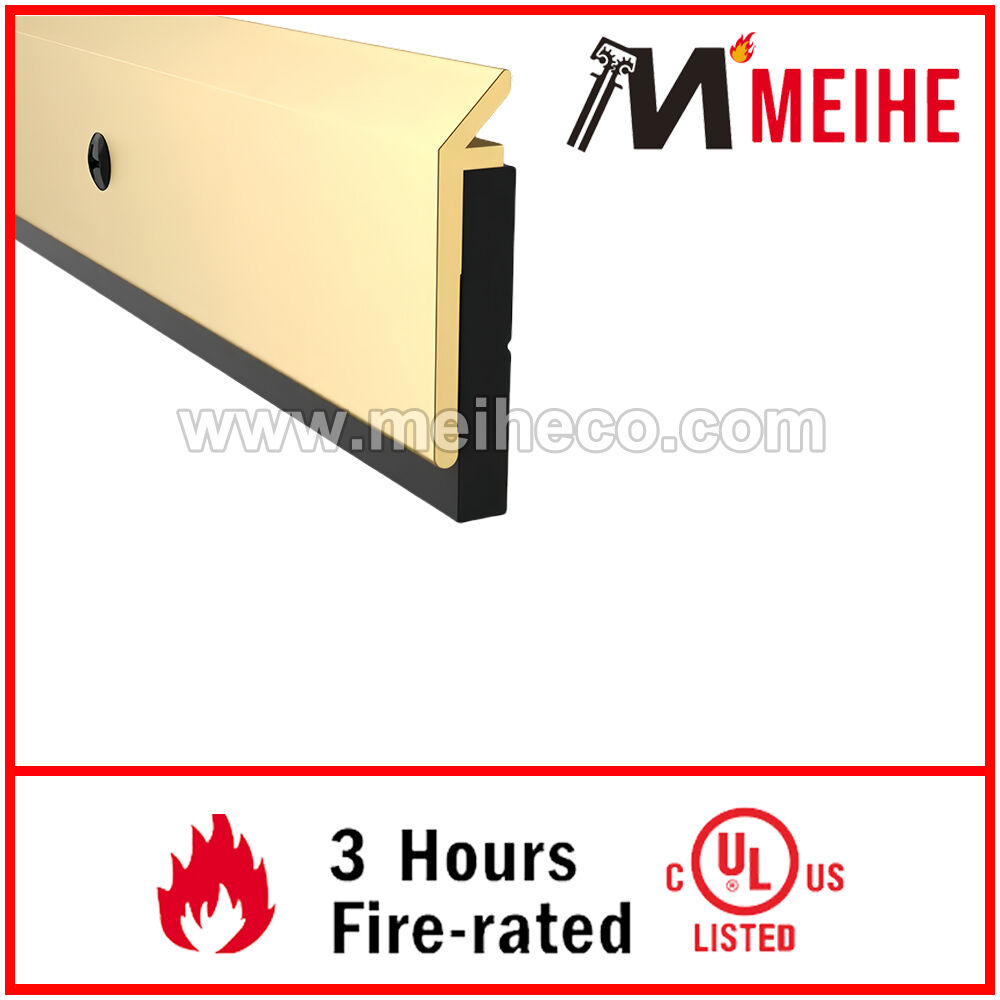

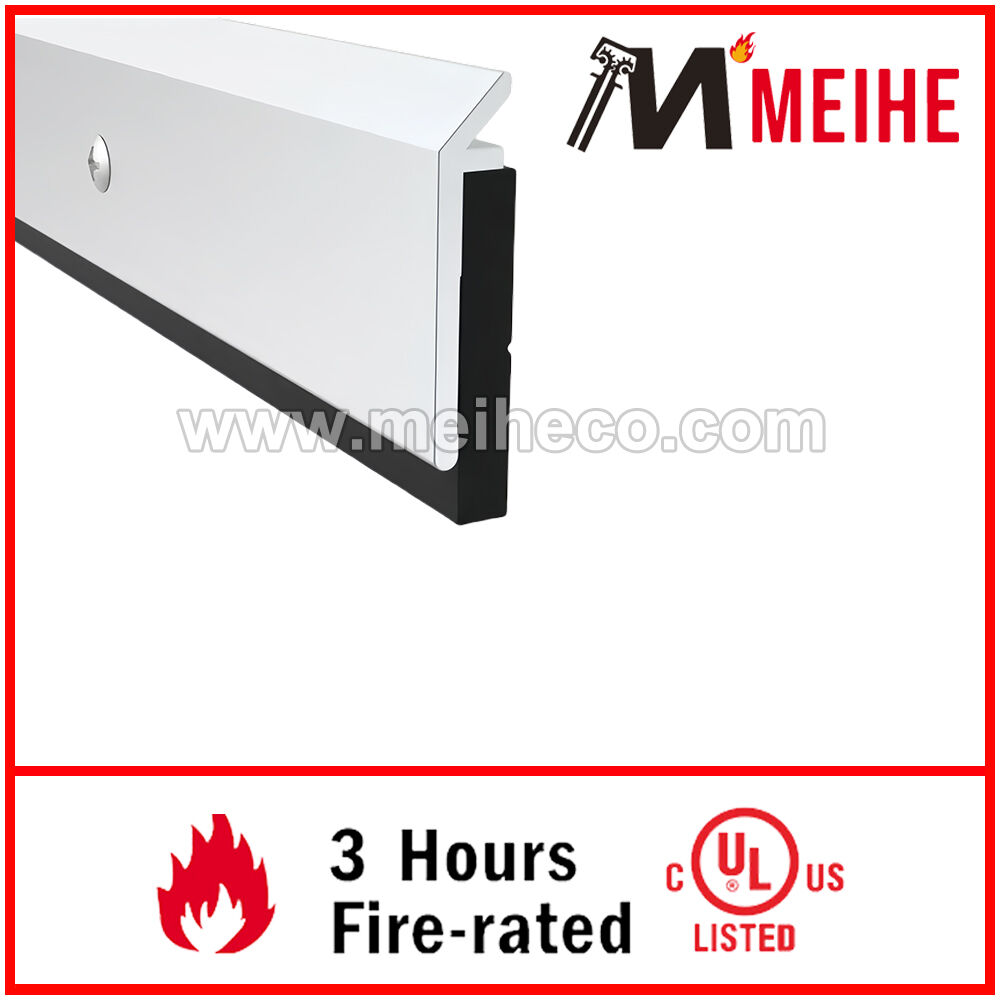

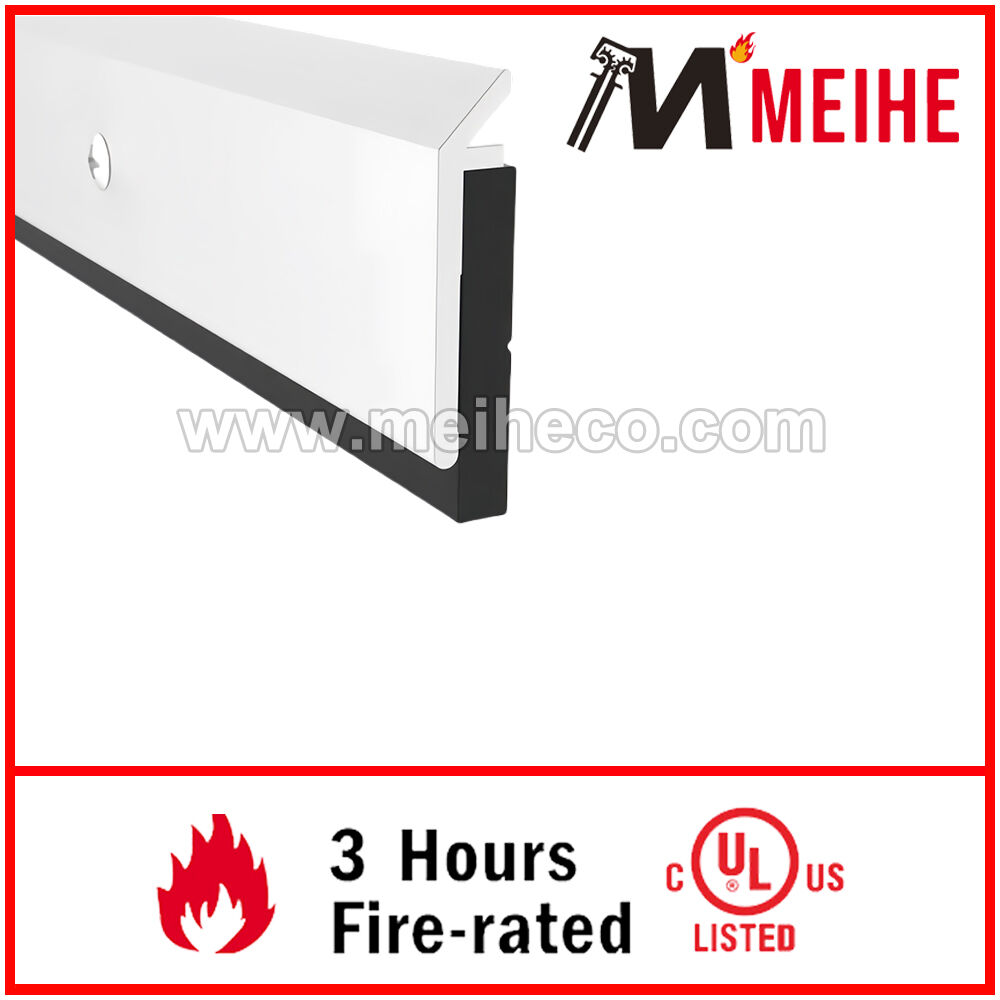

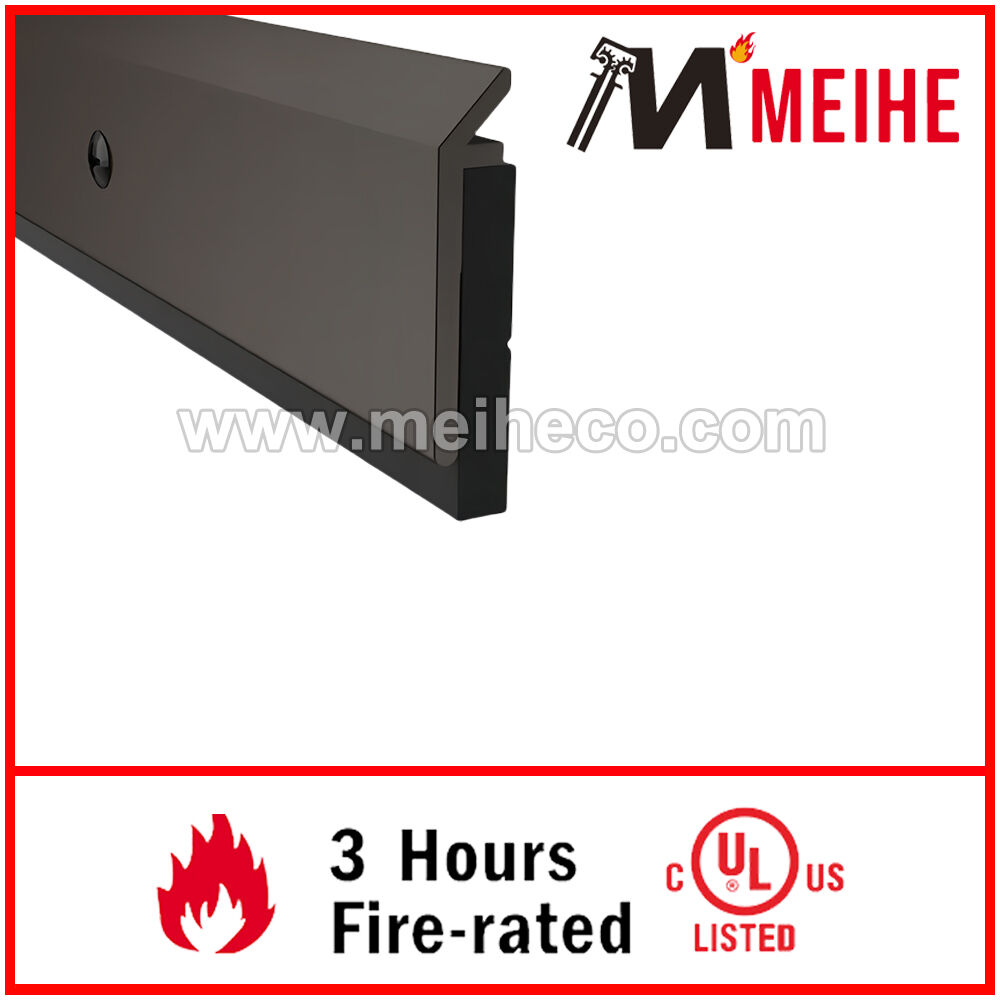

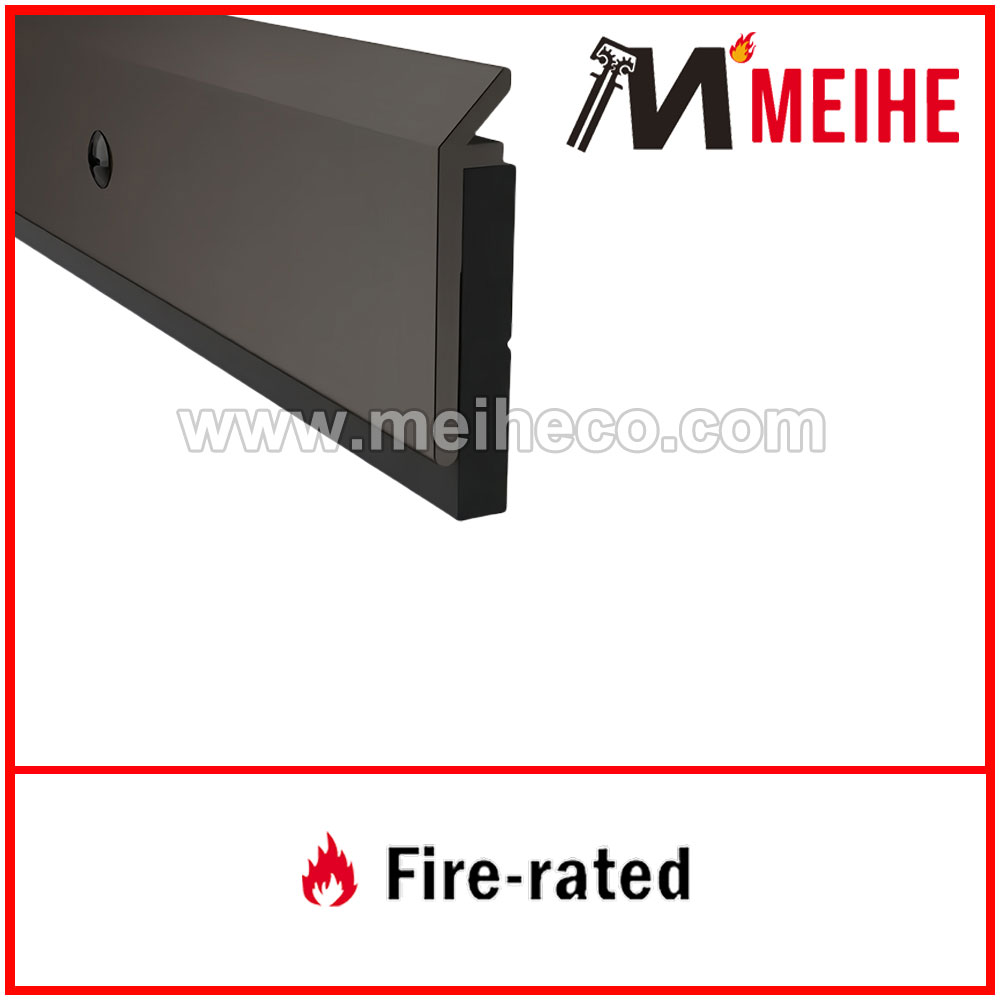

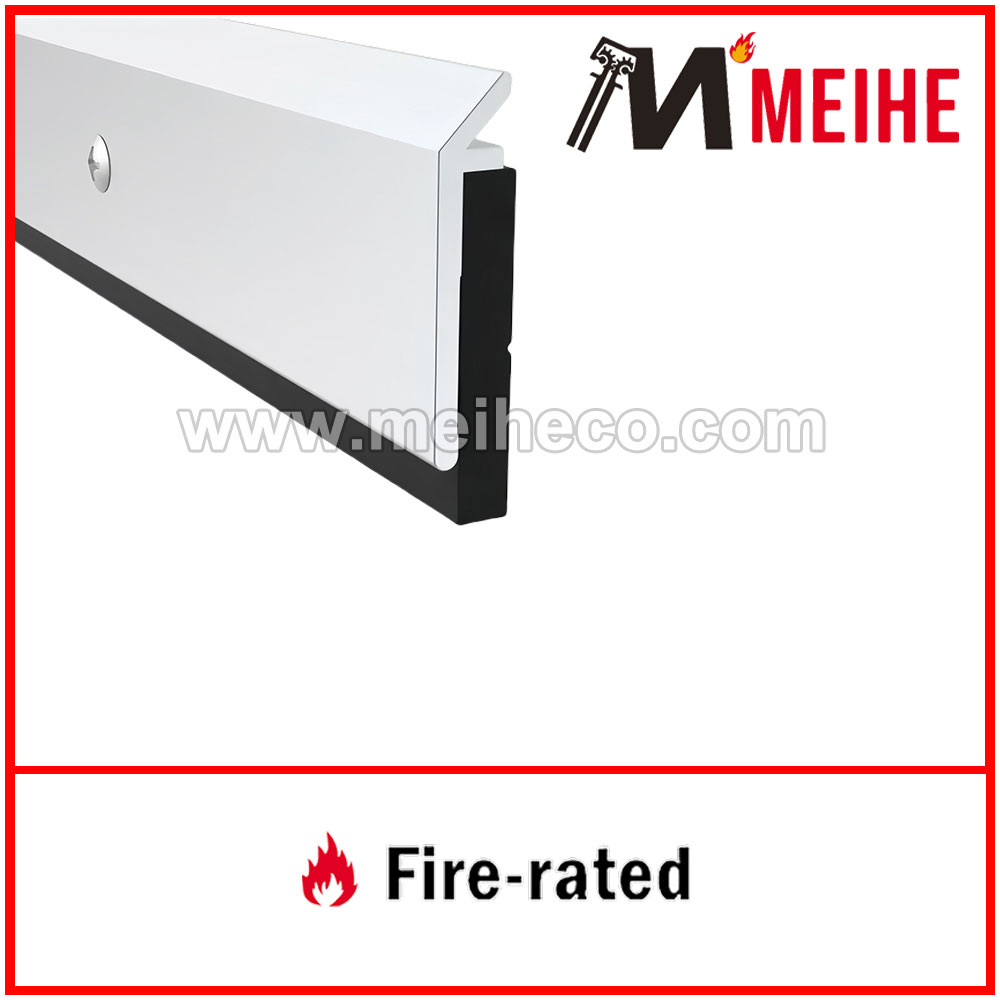

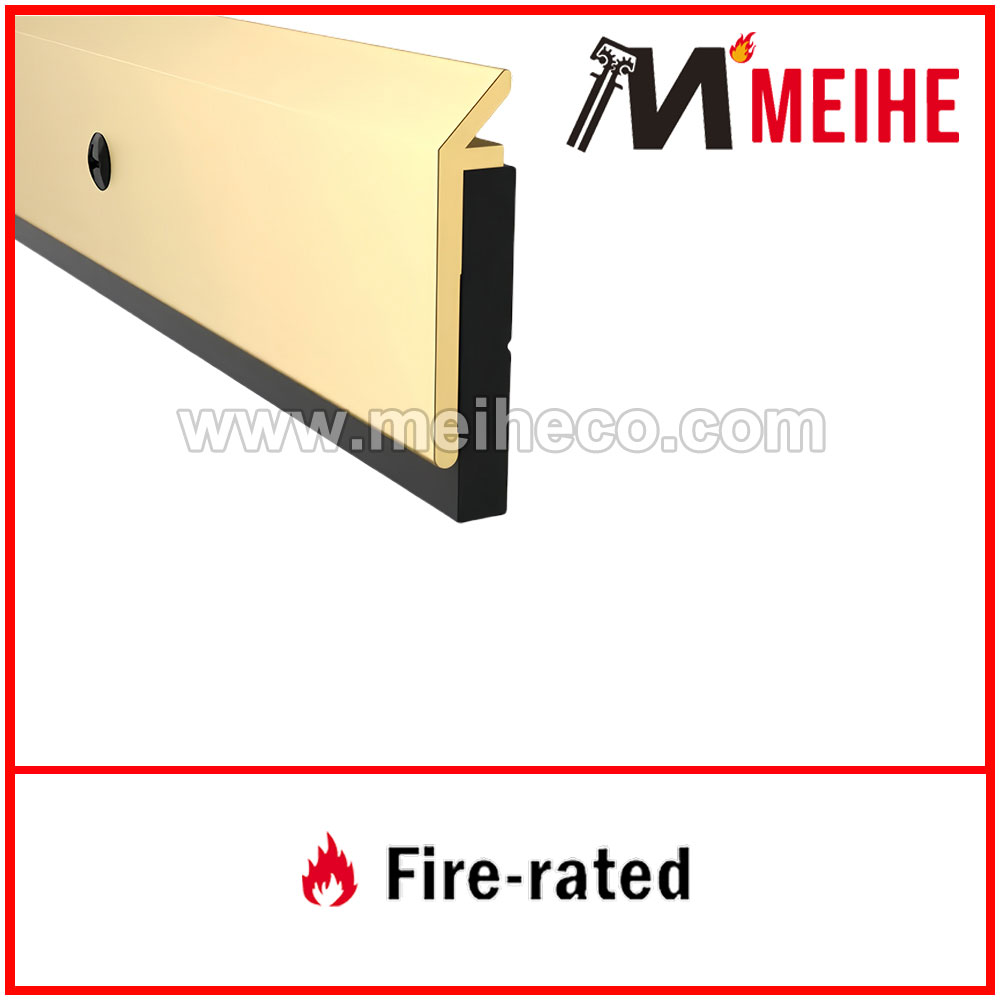

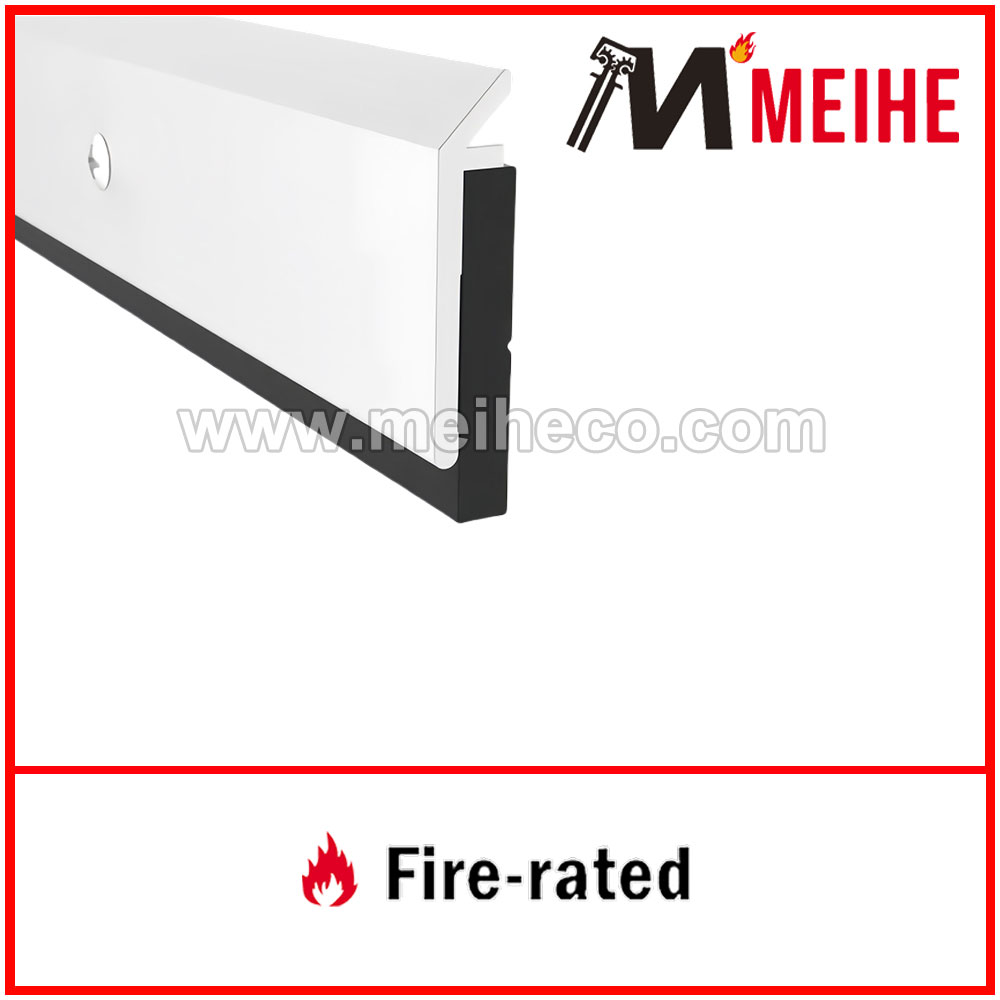

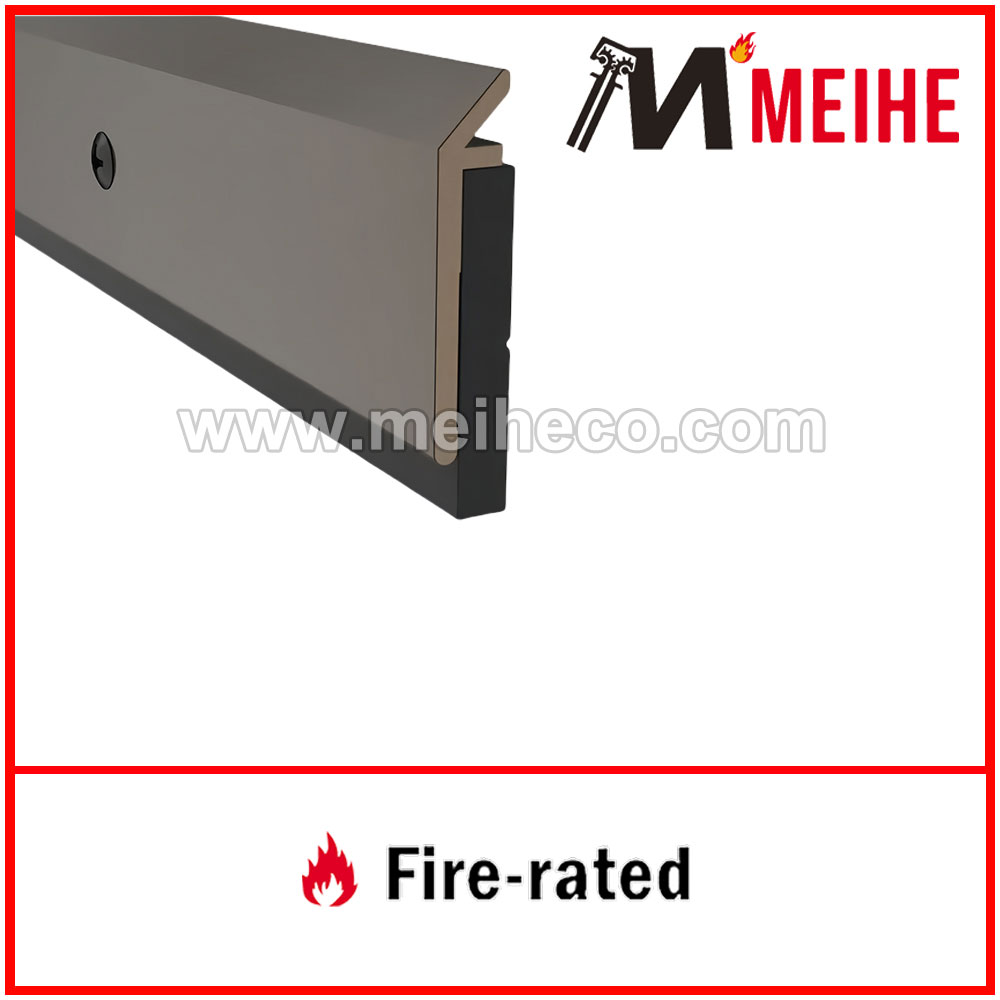

YDB101 Aluminum Door Bottom Sweep Seal With Neoprene Strips/ Aluminium Door Bottom Seal Strip
Door Sweeps
- Available Finishes: A, C, BL, DB, G, PB, LB, PW

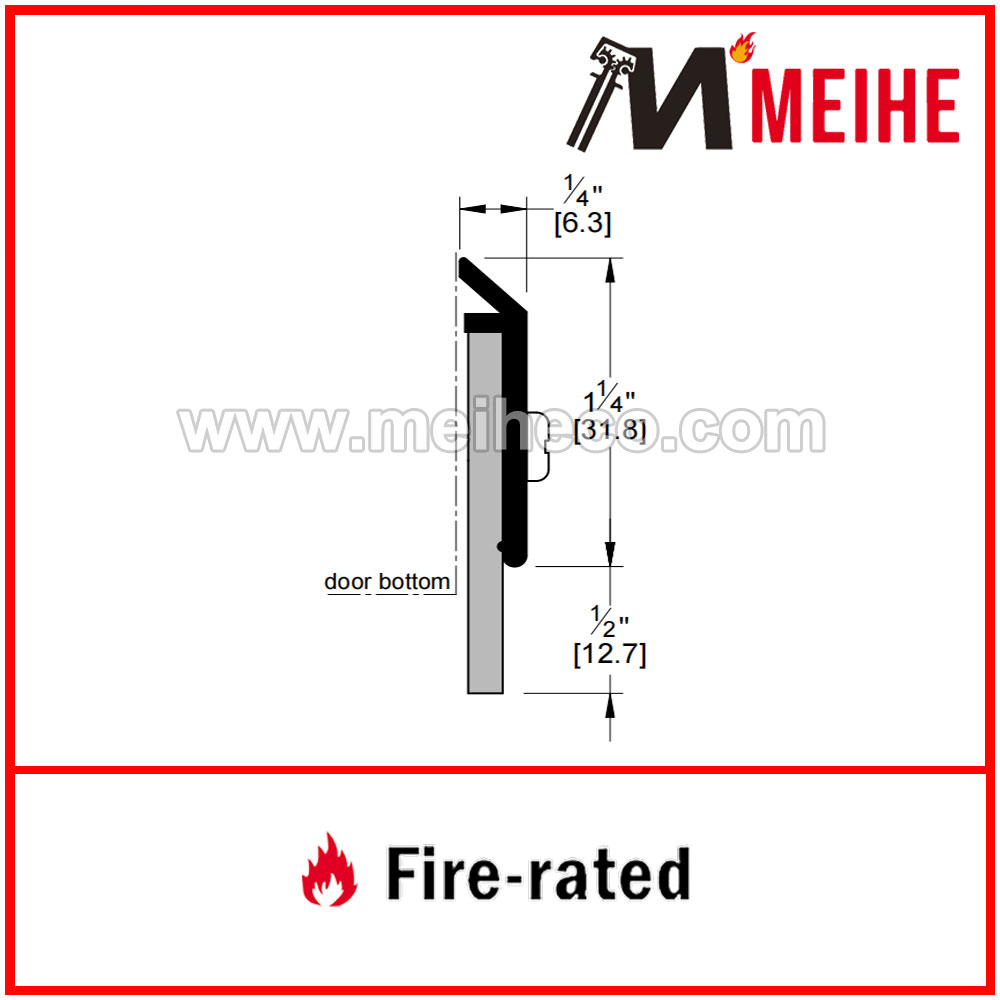

- Width: 1/4” (6.4 mm)
- Height: 1-13/16” (45.8 mm)
- Function：Dustproof Insectproof Soundproof
Certificate:
- UL
- Overview
- Recommended Products

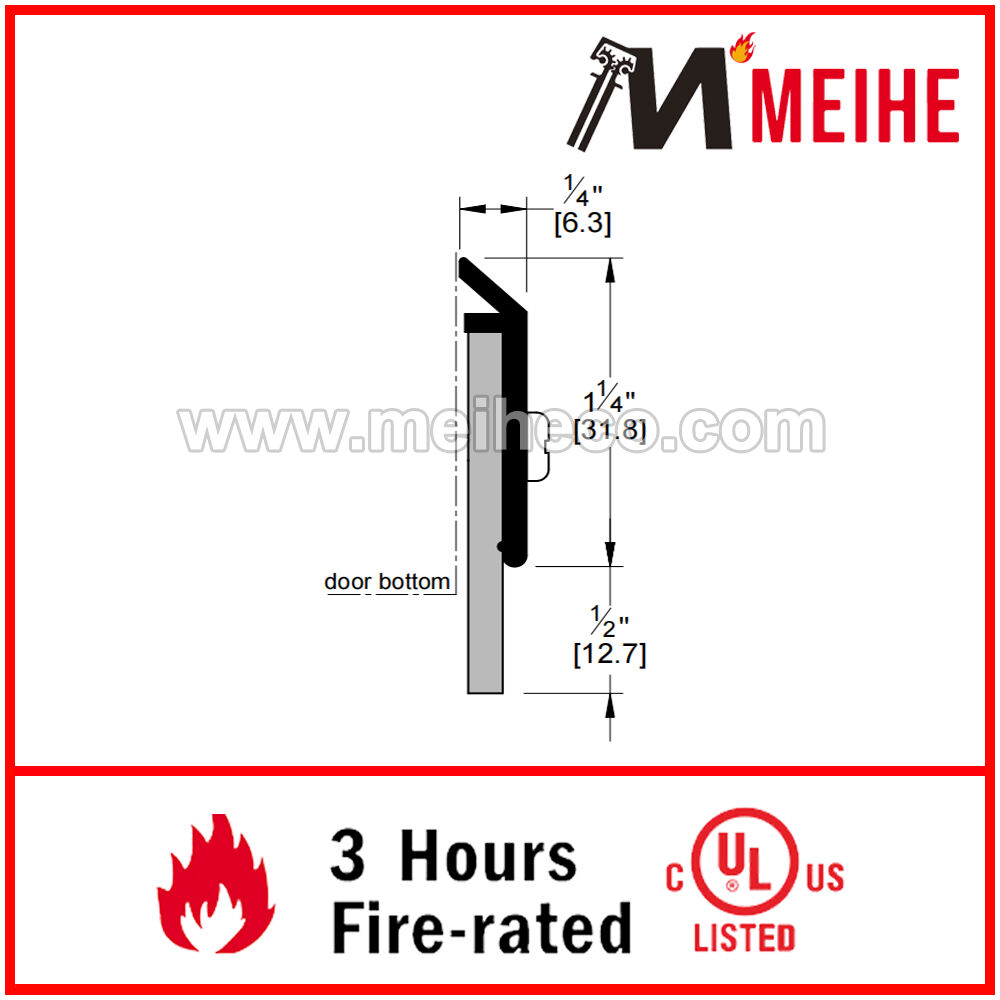

This door bottom, with a 1.25" sleek anodized aluminum casing, is fitted with a 9/16" thick sponge neoprene extrusion which is smoke, fire and air infiltration rated. It is surface applied to create a seal between the door bottom and threshold / floor surface to seal small gaps of approximately 9/16". Available in anodized aluminum and is custom cut to size.
Retainer Material |
Aluminum |
Temperature Range |
-4°F to +122°F |
Door Type |
Wooden Door, Metal Door |
Seal Type |
Neoprene Rubber Seal |
Mounting |
Surface Mounted |
Seal Height |
9/16" Height |
Total Height |
1-13/16" Height |
Additional Dimensions |
Door seal is 1/4" thick |
Length |
Standard 36",48";Custom Cut to Size |
Installation |
Drill Holes Drill holes are provided |
Cross Reference |
Pembo#3151_R; NGP#199_N |
Certificate |
Fire Rated - UL 10B/10C |
