ML002 280kg Holding Force Magnetic Lock Cylinder for Sliding Door Single Door Access Control with Signal
Magnetic Locks
- Material：Aluminum Alloy
- Usage：door
- OEM：Available
- Voltage：12VDC/24VDC
- Overview
- Recommended Products

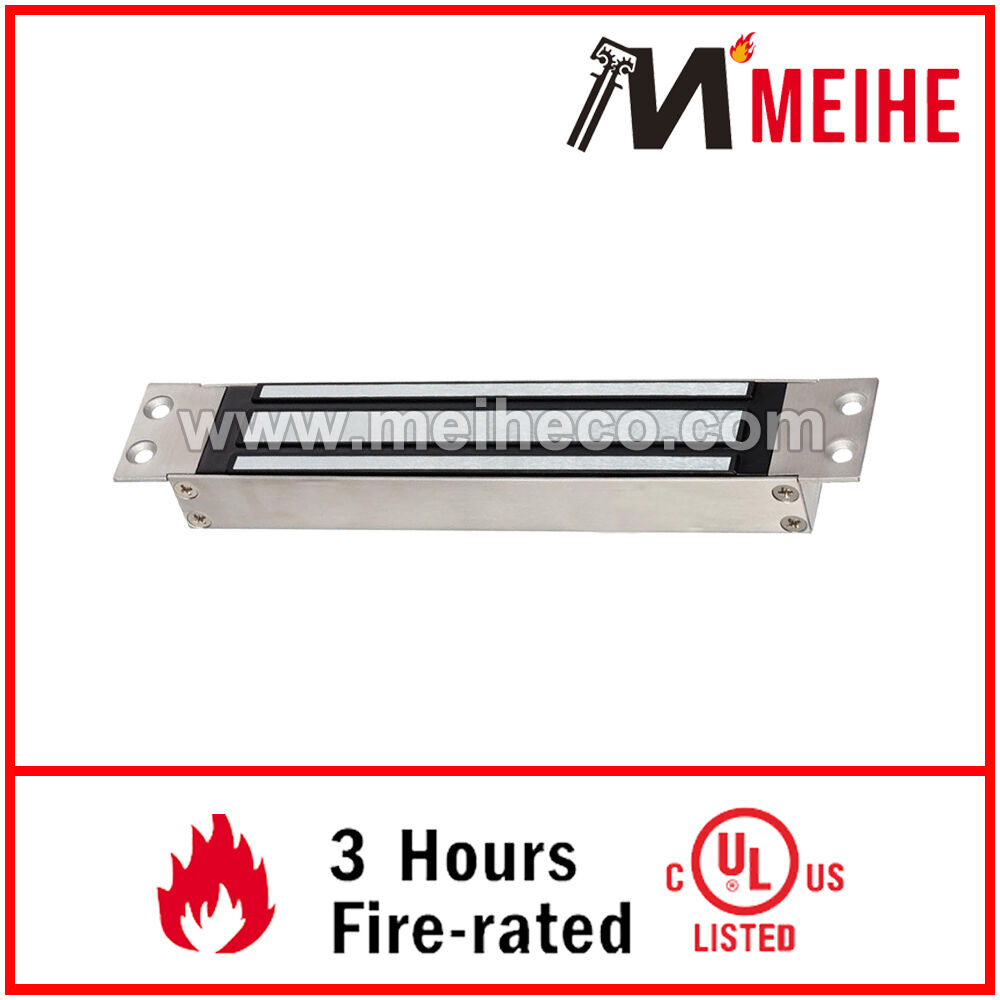

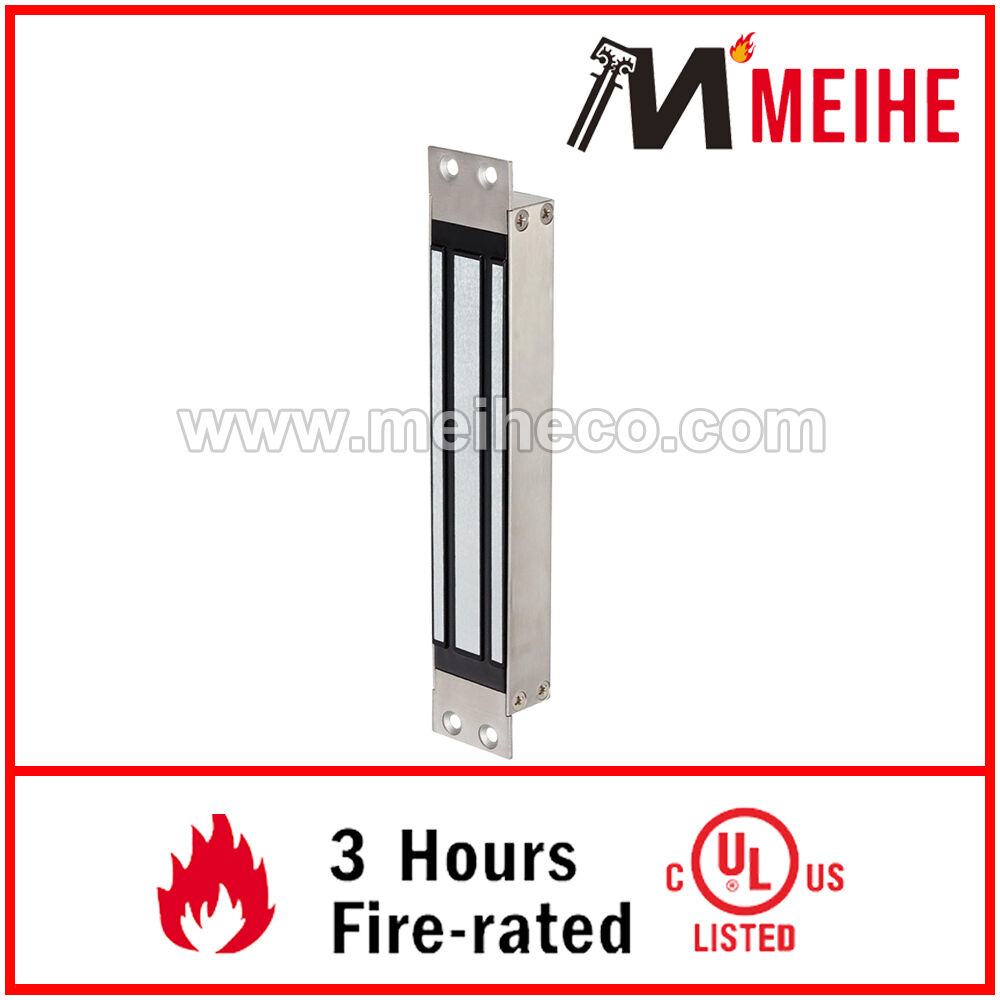

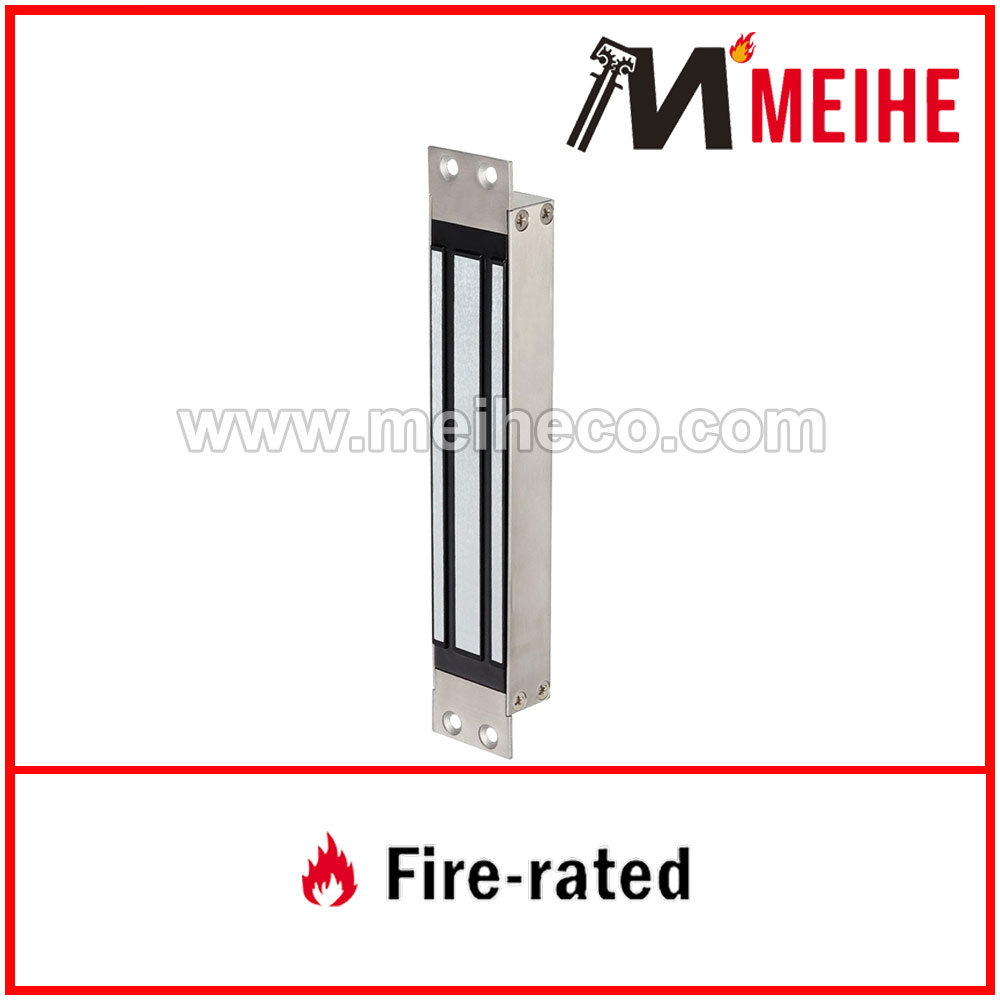

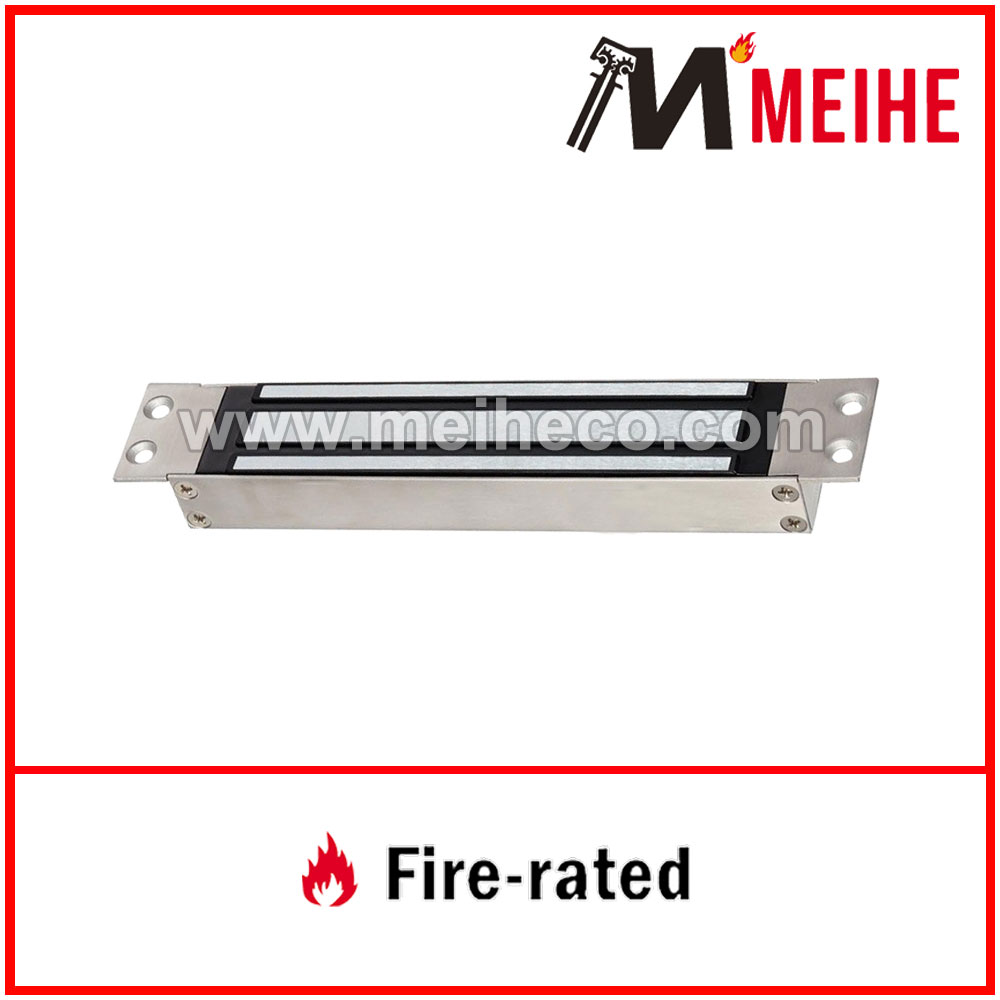

This electromagnetic lock is composed of two parts, magnetic lock (main body) and Iron plate. And as well working with other access control elements such as fingerprint pad, face recognition pad, power supply and so on. It can produce 280kgs holding force to lock down the door under the small voltage such as 12v or 24v. The picture on the left shows the magnetic lock(main body) only, it should work with iron plate together to lock down the door.
Signal Output |
Lock signal(NO/NC/COM) |

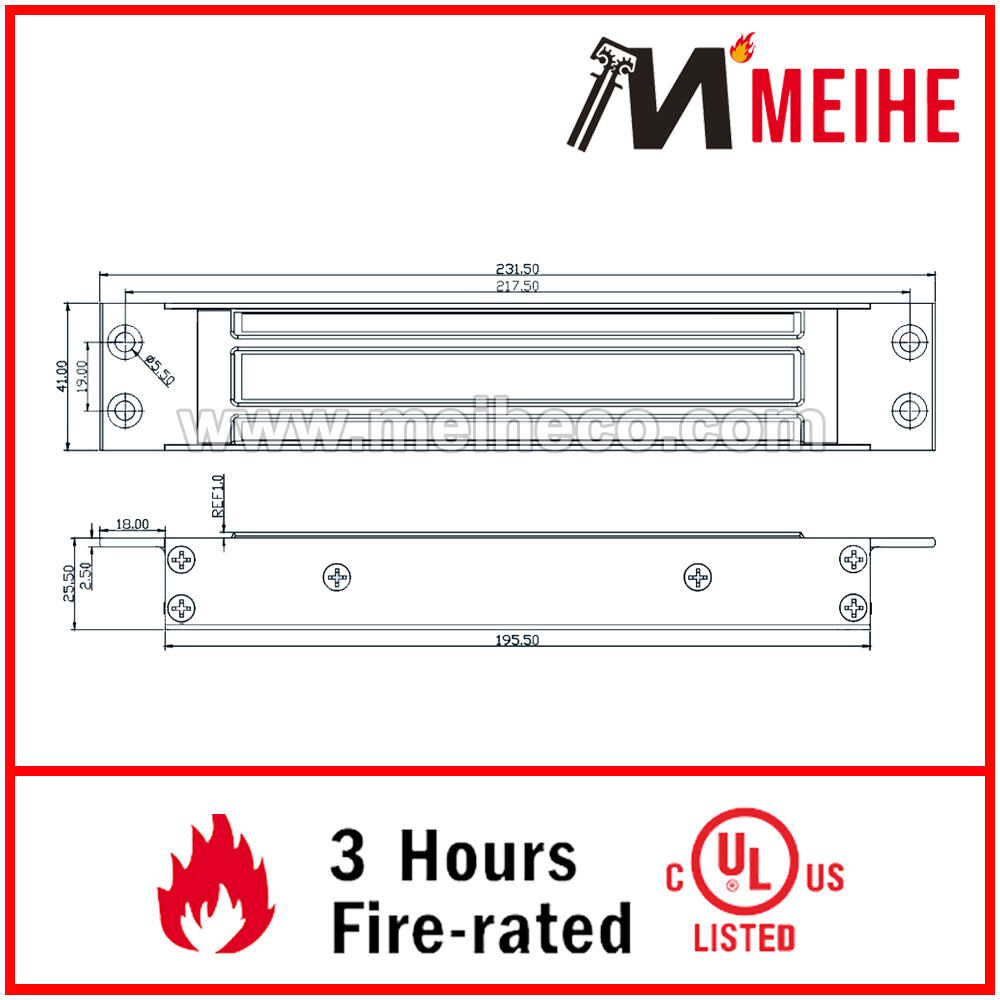

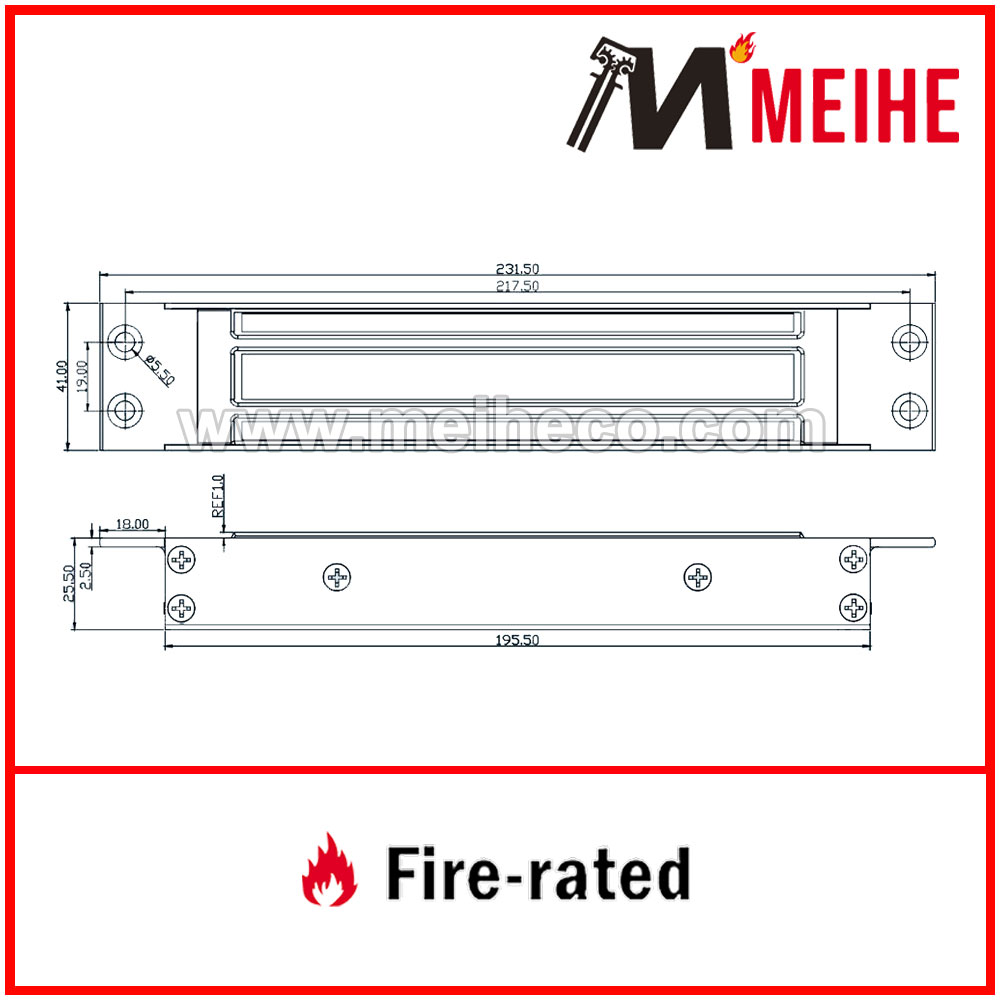

Size |
231.5L x 41W x 26.5H(mm) |
Armature Plate Dimension |
180L x 38W(mm) |
Holiding Force |
280kg(600lbs) |
Current |
12V/320mA(±10%)；24V/160mA(±10%) |
Voltage |
DC 12V/DC 24V |
Surface Temp |
Within +20℃ |
Operating Temp |
-20℃~+55℃(-4—131°F) |
Suitable for |
Wooden doors, Metal doors, Glassdoors, Fireproof doors |
