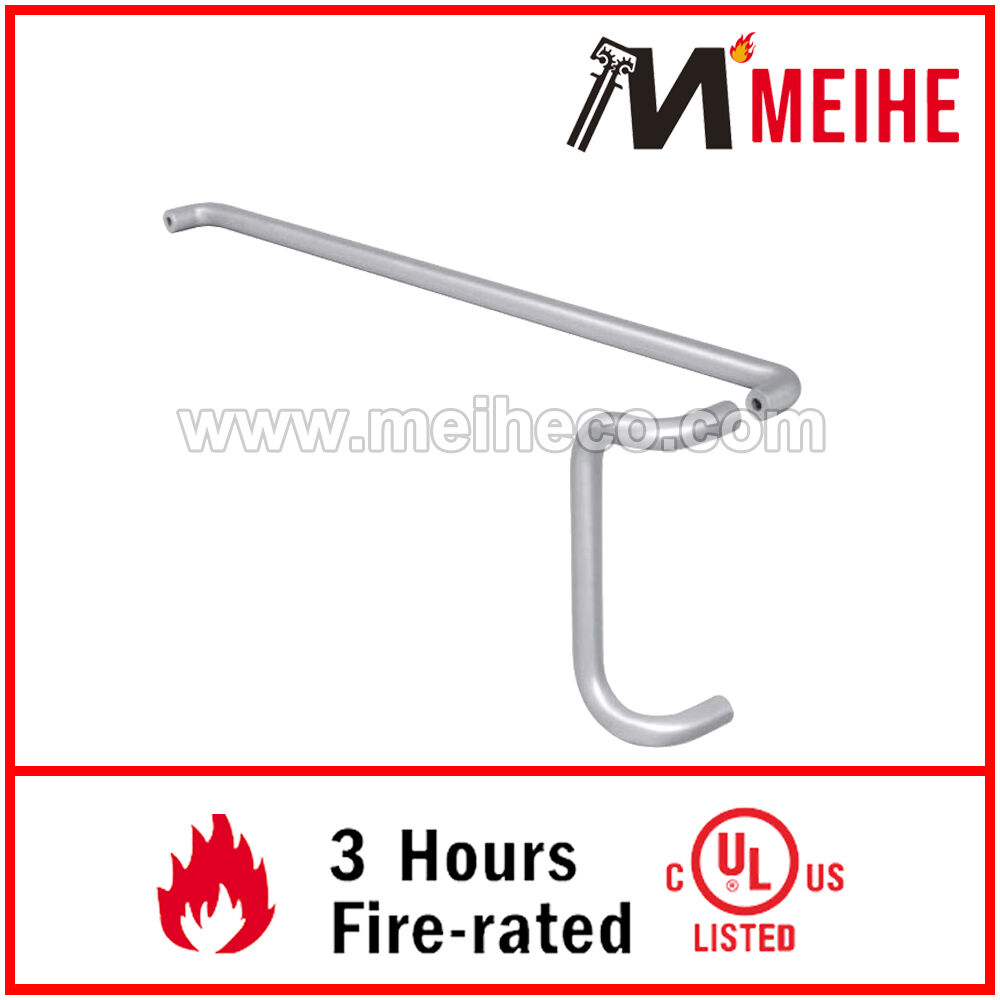

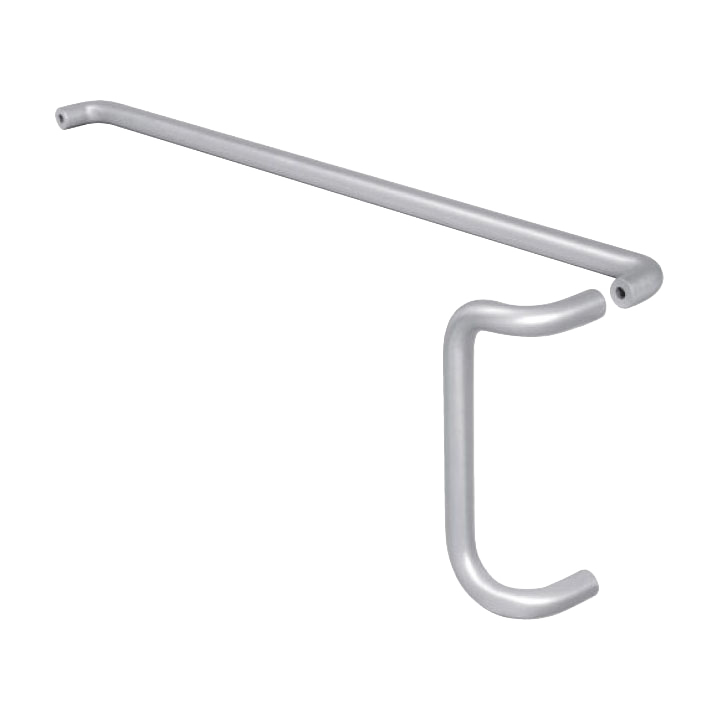

PH174+PB031 Offset Pull Handle Double Bend Push Bar Set
- Certification:ISO9001
- 1" Diameter Solid Aluminum Round
- Available Dimension:
- Push Bar: 33",39"45" and Specific
- Pull Handle:8",9",10",12" and Specific
- Overview
- Recommended Products
Features
- Standard 8",9", 10", or 12" Center To Center Offset Pull Handles Available, Customization available
- Standard Push Bar Widths Available For 36" or 48" doors.
- For Use On 1-3/4" Thick Commercial Aluminum Storefront Doors
- Offset Pull Handle Features 1-1/2" Offset Clearance, 2-1/2" Projection.
- Push Bar Features a 2-1/2" Projection
- Mounting Hardware Included
- 1" Diameter Solid Aluminum
Finishes
- Standard Finished - Stocked:
C: Clear Anodized & D: Dark Bronze Anodized & BLK: Black Anodized
- Optional Finished - Custom:
G: Gold Anodized & LB: Light Bronze Anodized & PB: Polished Chrome Anodized
|
Clear Aluminum Anodized Meihe P.N. |
Dark Bronze Anodized Meihe P.N. |
Size |
| PH174 PB031-C | PH174 PB031-D |

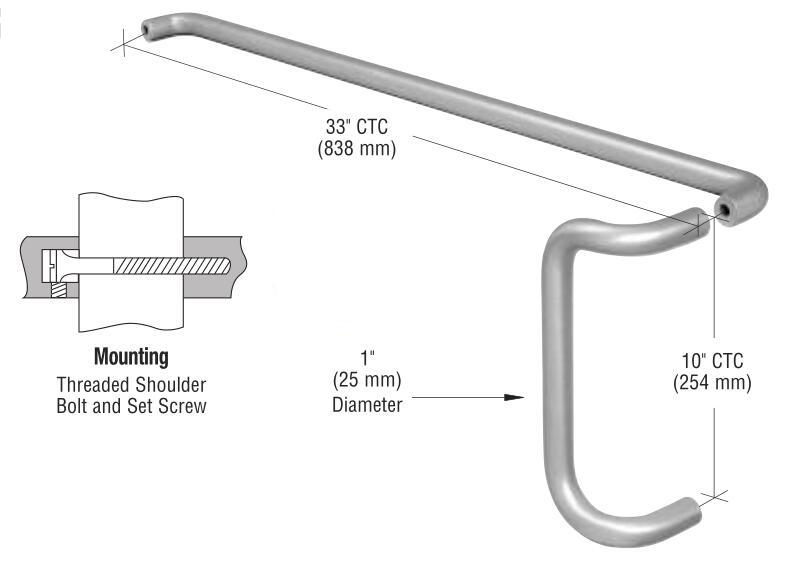

Push Bar: 33" (838 mm) Pull Handle: 10"(254 mm) |
